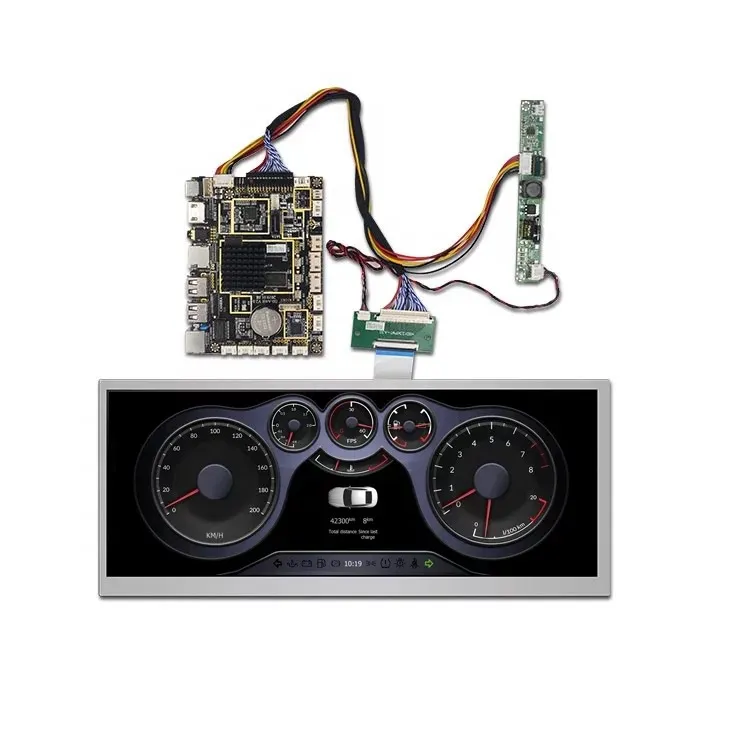

12.3inch Bar Type TFT LCD Panel

12.3″ Bar Type TFT LCD Panel

12.3″ Bar Type TFT LCD Panel

  • Embedded Design – Seamlessly integrates into shelf structures.

  • Optional AD Board – Flexible configuration based on project needs.

  • Wide Temperature Operation – Reliable performance in diverse environments.

  • Ultra-Thin & Lightweight – Easy to install and space-saving.

Categories
FacebookXPinterestRedditDeliciousLinkedinWhatsappTelegramEmail

Description

Application Scenarios

Retail & Commercial:

  • Shopping malls

  • Supermarkets

  • Flagship stores

  • Retail stores

  • Pharmacies

  • Luxury stores

  • Furniture showrooms

  • POP displays

Food & Hospitality:

  • Restaurants

  • Hotels

  • Casinos

  • Gyms

Transportation & Infrastructure:

  • Airports

  • Train and bus stations

  • Buses

  • Metro systems

  • Smart street lighting

Finance & Public Services:

    • Banks

    • Hospitals

Weight0.6 kg
Dimensions310 × 129.1 × 7.5 mm
Active Area292.608(H) ×109.728(V)mm
OSOptional
RAMOptional
ROMOptional
Resolution1920*720
Viewing Angles178°(H) X 178°(V)
Brightness700cd/㎡
Interfaces2port LVDS(DE Only)
Display Color16.7M
IntetnetOptional
Storage EnvironmentTemperature：-40℃～90℃
Humidity：5%～95%
Atmospheric Pressure：86kPa～104kPa
Working EnvironmentTemperature：-30℃～85℃
Humidity：10%～85%
Atmospheric Pressure：86KPa～104KPa
Operating Voltage100-240V(50/60Hz)
Power Consumption<15W
SoftwareOptional
CertificationsCE/ RoHS/ FCC
