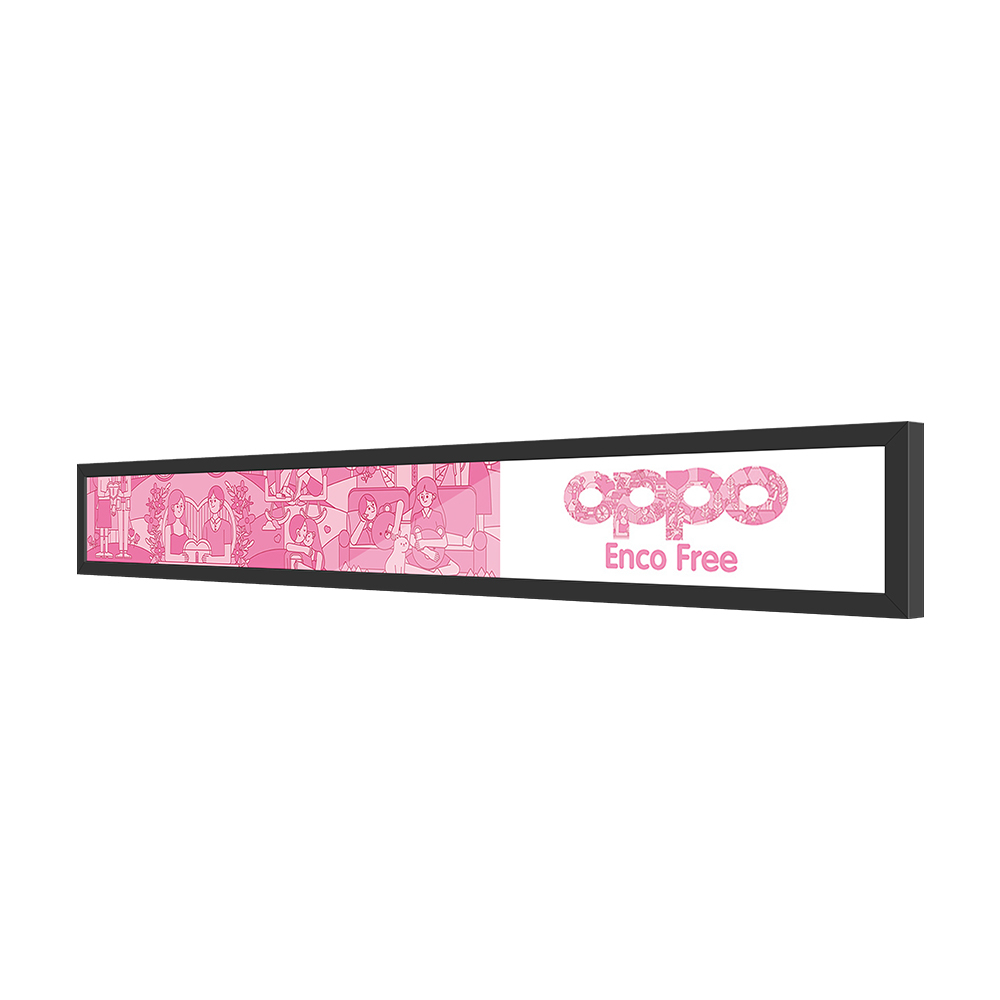

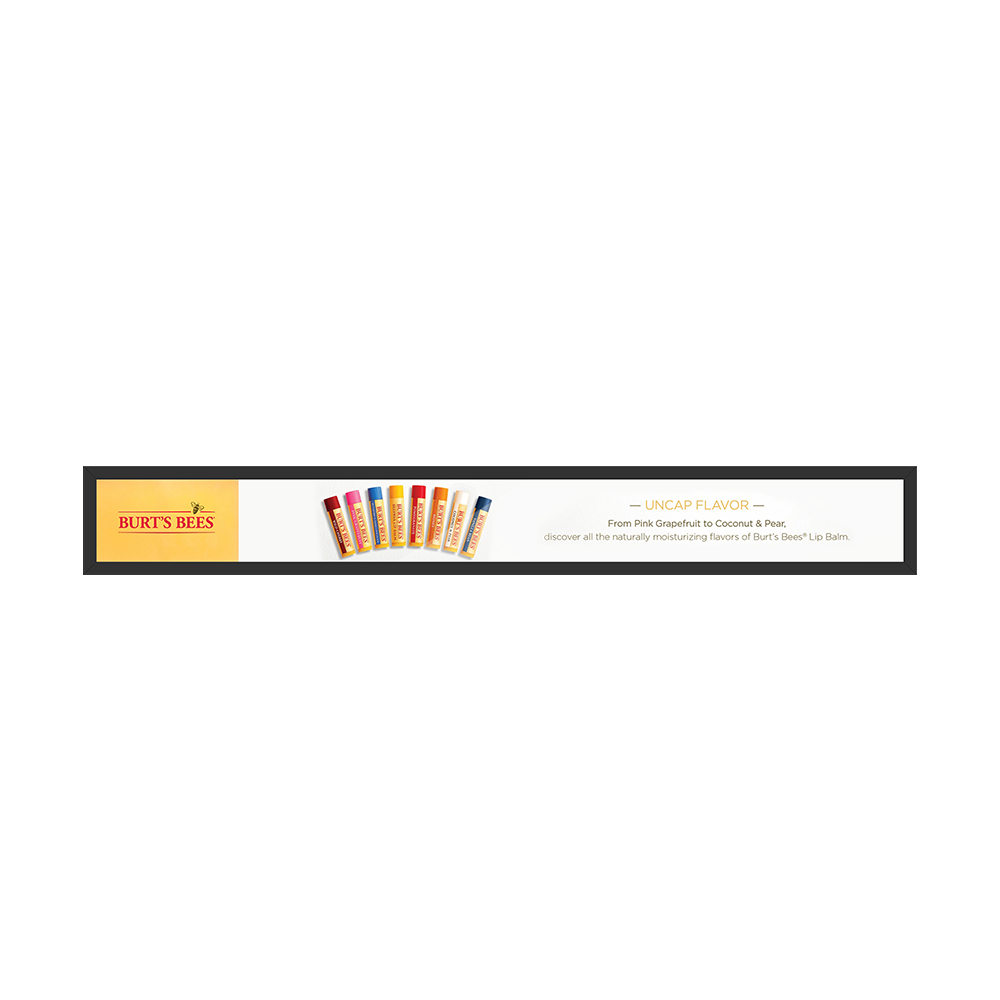

23.7″ Shelf Edge LCD Display

Description

Application Scenarios

Retail & Commercial:

• Shopping malls

• Supermarkets

• Flagship stores

• Retail stores

• Pharmacies

• Luxury stores

• Furniture showrooms

• POP displays

Food & Hospitality:

• Restaurants

• Hotels

• Casinos

• Gyms

Transportation & Infrastructure:

• Airports

• Train and bus stations

• Buses

• Metro systems

• Smart street lighting

Finance & Public Services:

• Banks

• Hospitals

• Exhibition centers

• Weight	2.9 kg
  Dimensions	622 × 102 × 46 mm
  Active Area	599(H) ×66.8(V)mm
  OS	Android 7.1
  RAM	1G DDR3(1G/2G for optional)
  ROM	8G EMMC(8G/16G/32G/64G EMMC for optional)
  Resolution	1920*215
  Viewing Angles	89/89/89/89 (Typ.)(CR≥10)
  Brightness	500cd/㎡
  Interfaces	1*micro USB(OTG), 1*TF card, 1*DC
  Display Color	16.7M
  Intetnet	Support 2.4G WIFI connection
  Storage Environment	Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
  Working Environment	Temperature：0℃～45℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
  Operating Voltage	100-240V(50/60Hz)
  Power Consumption	<30W
  Software	Support CMS software and AIoT interactive software
  Certifications	CE/ RoHS/ FCC

  ---
