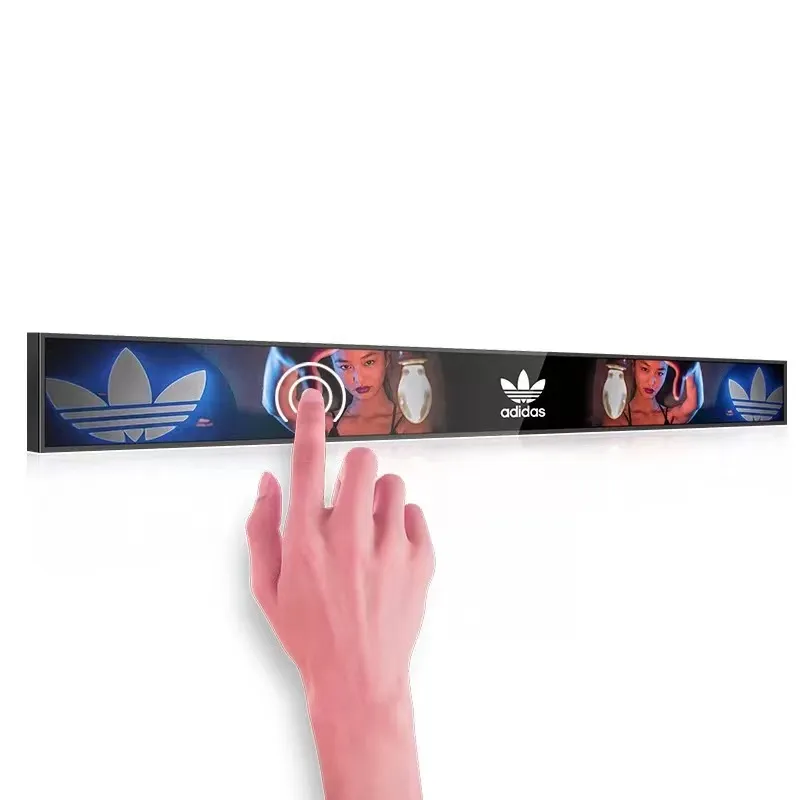

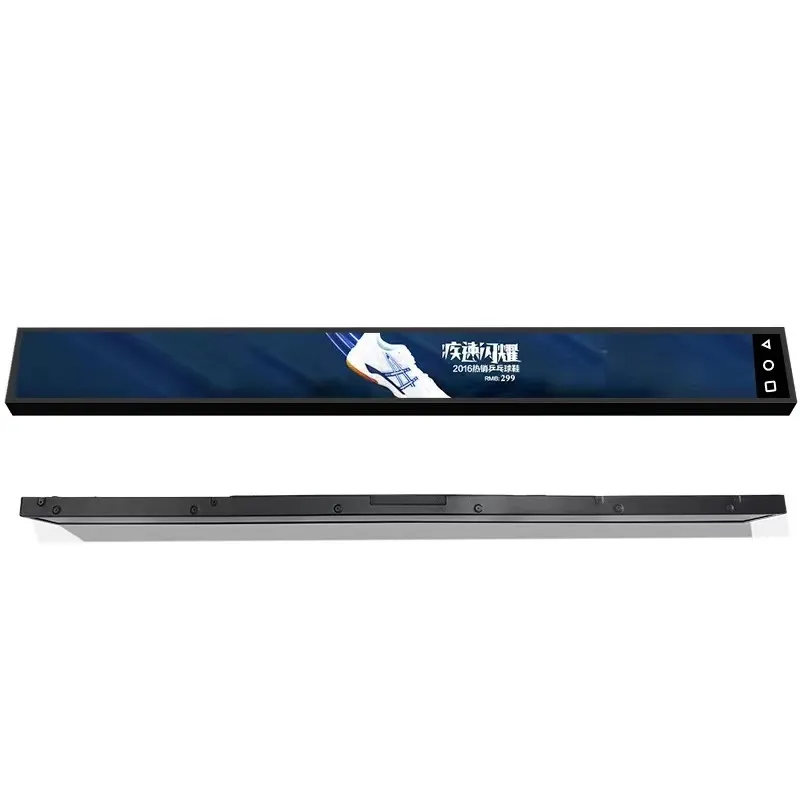

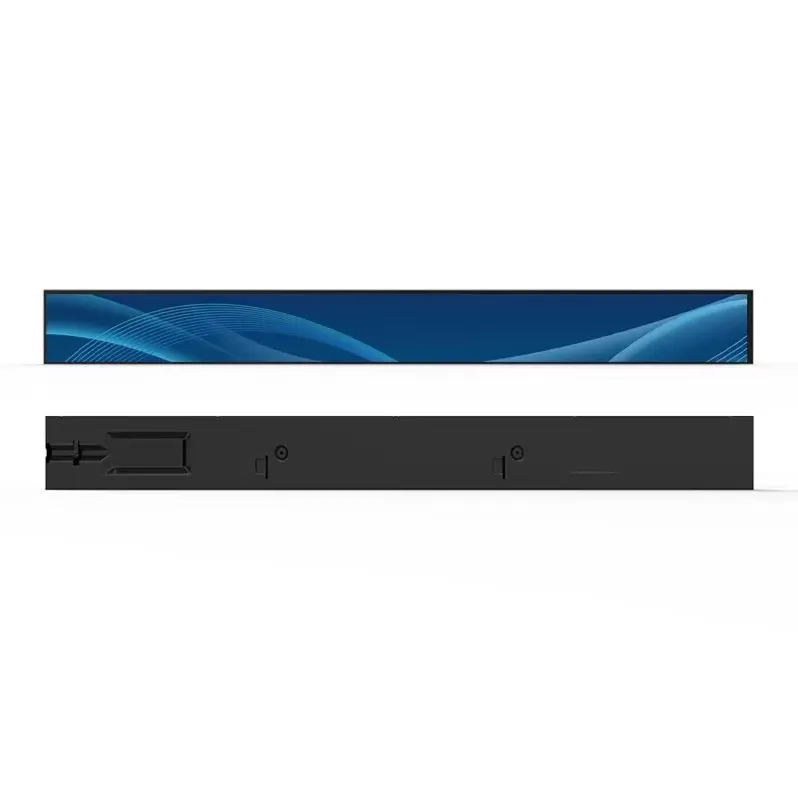

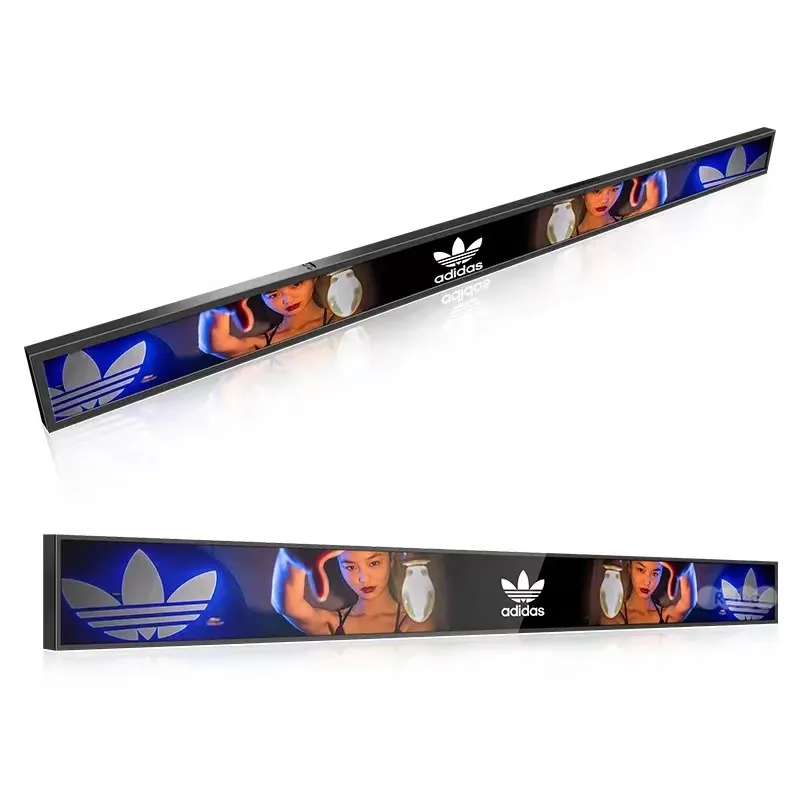

23″ Shelf Edge LCD Display with In-Cell Touch

Description

Application Scenarios

Retail & Commercial:

• Shopping malls

• Supermarkets

• Flagship stores

• Retail stores

• Pharmacies

• Luxury stores

• Furniture showrooms

• POP displays

Food & Hospitality:

• Restaurants

• Hotels

• Casinos

• Gyms

Transportation & Infrastructure:

• Airports

• Train and bus stations

• Buses

• Metro systems

• Smart street lighting

Finance & Public Services:

• Banks

• Hospitals

• Exhibition centres

• Weight	0.82 kg
  Dimensions	593.8 × 63.4 × 19.7 mm
  Active Area	585.6(H) ×48.19(V)mm
  OS	Android 8.1
  RAM	1G DDR3(1G/2G for optional)
  ROM	8G EMMC(8G/16G/32G/64G EMMC for optional)
  Resolution	1920*158
  Viewing Angles	178°(H) X 178°(V)
  Brightness	700cd/㎡
  Interfaces	1*micro USB, 1*micro USB(OTG), 1*TF card, 1*Type-C
  Display Color	16.7M
  Intetnet	Support 2.4G WIFI connection
  Storage Environment	Temperature：-20℃～60℃ Humidity：5%～95% Atmospheric Pressure：86kPa～104kPa
  Working Environment	Temperature：0℃～45℃ Humidity：10%～85% Atmospheric Pressure：86KPa～104KPa
  Operating Voltage	100-240V(50/60Hz)
  Power Consumption	<24W
  Software	Support CMS software and AIoT interactive software
  Certifications	CE/ RoHS/ FCC

  ---
