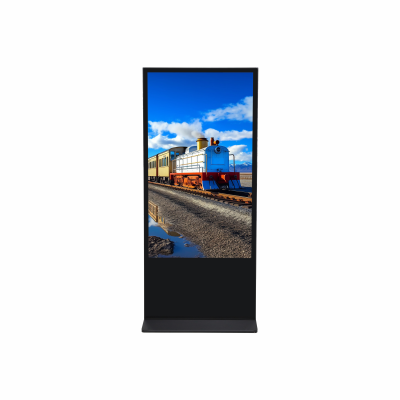

Dahua LDV65-SAI400L DIGITAL KIOSK

Dahua LDV65-SAI400L DIGITAL KIOSK

Dahua LDV65-SAI400L DIGITAL KIOSK

> Designed with an industrial-grade panel.

> Includes a mainstream quad-core CPU, Android system, and decodes up to 4K resolution.

> Plays and releases programs in multiple modes.

> With intelligent split screen, its page layout can be freely adjusted, making it suitable for a variety of scenes.

> Designed with B/S architecture, the device manages programs by time and location, and generates operation reports.

> Supports encrypting platform data transmission, multi-level permission review for program release and terminal password protection.

> The device offers unified platform management, and can be remotely controlled by the platform.

Categories
FacebookXPinterestRedditDeliciousLinkedinWhatsappTelegramEmail
LCD Panel

LCD Panel
Screen Size65 inch
BacklightDLED
LCD TechnologyIPS/VA
Aspect Ratio9:16
Brightness320 cd/m² (typ.)
Display Colors10 bit (8 bit + FRC), 1.07B colors
Resolution2160 (H) × 3840 (V)
Viewing Angle178° (H) / 178° (V)
Response Time8 ms
Surface TreatmentHaze 1%
Built-in System
Operating SystemAndroid 11.0
CPU4 cores A55, 1.92 GHz
RAM4 GB
ROM32 GB
Video DecodingH.265 HEVC MP-10@L5.1 up to 2160p@60 fps;
H.264 AVC HP@L5.1 up to 2160p@30 fps;
VP9 Profile 2 up to 2160p@60 fps;
H.264 MVC up to 1080p@30 fps;
MPEG-4 ASP@L5 up to 1080p@30 fps;
WMV/VC-1 SP/MP/AP up to 1080p@30 fps;
Function
Audio CompressionMPEG-3, WMA, WAV
Video CompressionMPEG-4, H.264 AVC/MVC, H.265 HEVC
Video Formatmp4, avi, mov, mkv, wmv
Device Ports
Network Port1 × RJ–45 10/100/1,000 Mbps self-adaptive Ethernet port
Wi-FiOptional (External Wi-Fi module)
Data Transmission Ports1 × USB 2.0 (type A); 1 × USB 3.0 (type A)
1 × TF card slot, up to 128 GB
Video Input1 × HDMI 2.1 (3840 × 2160@60 Hz)
Audio Port1 × 3.5 mm jack output
IR ReceiverYes
Speaker
Built-in Speaker2 × 5 W
General
Power Supply100–240 VAC, 50/60 Hz
Power Consumption150 W (typ.), 160 W (max)
Standby Power Consumption≤0.5 W
Operating Temperature0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operating Humidity10%–85% (RH), non-condensing
Storage Humidity10%–90% (RH), non-condensing
Product MaterialMetal casing
Casing Color (Frame/Rear)Black
Product Dimensions1,955.0 mm × 879.0 mm × 88.9 mm (76.97″ × 4.68″ × 3.50″) (without bracket)
2,000.0 mm × 882.0 mm × 471.5 mm (78.74″ × 34.72″ × 18.56″) (with bracket)
Frame Size35.6 mm/36.3 mm /38.4 mm (1.4″/1.43″/1.51″) (T/L/R)
Packaging Dimensions2,125 mm × 200 mm × 1,050 mm (83.7″ × 7.9″ × 41.3″) (L × W × H)
Net Weight65 kg (143.30 lb)
Gross Weight78 kg (171.96 lb)
InstallationVertical mount
Display ModePortrait
AccessoryBracket, user’s manual, power cord, legal and regulatory information, energy label, remote control
Certification
CertificationsCE EMC, CE LVD, CE ERP
Panel Dimensions75 inch
BacklightDLED
LCD TechnologyIPS/VA
Aspect Ratio9: 16
Brightness320 cd/m² (typ.)
ContrastIPS 1200:1(typ.) / VA 4000:1(typ.)
Display Colors10 bit (8 bit + FRC), 1.07B colors
Resolution2160 (H) × 3840 (V)
Viewing Angle178° (H); 178° (V)
Response Time8 ms (typ.)
Surface TreatmentHaze 25%
Built-in System
Operating SystemAndroid 11.0
CPU4 cores A55, 1.92 GHZ
RAM4 GB
ROM32 GB
Video DecodingH.265 HEVC MP-10@L5.1 up to 2160p@60 fps

H.264 AVC HP@L5.1 up to 2160p@30 fps

VP9 Profile 2 up to 2160p@60 fps

H.264 MVC up to 1080p@60 fps

MPEG-4 ASP@L5 up to 1080p@60 fps (ISO-13818)

WMV/VC-1 SP/MP/AP up to 1080p@60 fps

Function
Audio CompressionMPEG-3, WMA, WAV
Video CompressionMPEG-4, H.264 AVC/MVC, H.265 HEVC
Video Formatmp4, avi, mov, mkv, wmv
Device Ports
Network Port1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet

port

Wi-FiOptional (External Wi-Fi module)
BluetoothNO
Data Transmission Ports1 × USB 2.0 ports (type A)

1 × USB 3.0 ports (type A)

1 × TF card slot, up to 128 GB

Video Input1 × HDMI 2.1 (4K @60Hz)
Video OutputNO
Audio Port1 × 3.5 mm jack output
IR ReceiverYes
Speaker
Built-in Speaker2 × 5 W
General

General

Power Supply100–240 VAC, 50/60 Hz
Power Consumption≤ 200 W
Standby Power

Consumpton

≤ 0.5 W
Operating Temperature0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
Storage Temperature–20 °C to +60 °C (–4 °F to +140 °F)
Operatng Humidity10%–85% (RH), non-condensing
Storage Humidity10%–90% (RH), non-condensing
Product MaterialMetal casing
Casing Color (Frame/Rear)Black
Product Dimensions2028 mm × 1028 mm × 520 mm (79.84″ × 40.47″ ×

20.47″)

Packaging Dimensions2204 mm × 234 mm ×1194 mm (86.77″ × 9.21″ ×

47.01”)

Net Weight80 kg (176.37 lb)
Gross Weight99 kg (218.26 lb)
InstallationVertical mount
Display ModePortrait
AccessoryBase, user’s manual, power cord, legal and regulatory

information, remote control

Certification
CertificationsCE; ERP
