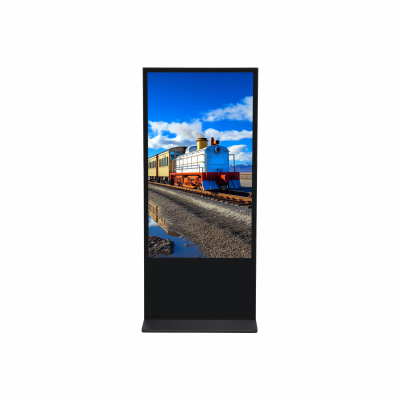

Dahua LDV65-SAI400TL DIGITAL KIOSK

Dahua 65 inch Indoor Vertical LCD Digital Signage

> Designed with an industrial-grade panel.

> Includes a mainstream quad-core CPU, Android system, and decodes up to 4K resolution.

> Plays and releases programs in multiple modes.

> With intelligent split screen, its page layout can be freely adjusted, making it suitable for a variety of scenes.

> Designed with B/S architecture, the device manages programs by time and location, and generates operation reports.

> Supports encrypting platform data transmission, multi-level permission review for program release and terminal password protection.

> The device offers unified platform management, and can be remotely controlled by the platform.

LCD Panel

Screen Size

65 inch

Backlight

DLED

LCD Technology

IPS/VA

Aspect Ratio

9:16

Brightness

320 cd/m² (typ.)

Display Colors

10 bit (8 bit + FRC), 1.07B colors

Resolution

2160 (H) × 3840 (V)

Viewing Angle

178° (H) / 178° (V)

Response Time

8 ms

Surface Treatment

Haze 1%

Built-in System

Operating System

Android 11.0

CPU

4 cores A55, 1.92 GHz

RAM

4 GB

ROM

32 GB

Video Decoding

H.265 HEVC MP-10@L5.1 up to 2160p@60 fps;
H.264 AVC HP@L5.1 up to 2160p@30 fps;
VP9 Profile 2 up to 2160p@60 fps;
H.264 MVC up to 1080p@30 fps;
MPEG-4 ASP@L5 up to 1080p@30 fps;
WMV/VC-1 SP/MP/AP up to 1080p@30 fps;

Function

Audio Compression

MPEG-3, WMA, WAV

Video Compression

MPEG-4, H.264 AVC/MVC, H.265 HEVC

Video Format

mp4, avi, mov, mkv, wmv

Device Ports

Network Port

1 × RJ–45 10/100/1,000 Mbps self-adaptive Ethernet port

Wi-Fi

Optional (External Wi-Fi module)

Data Transmission Ports

1 × USB 2.0 (type A); 1 × USB 3.0 (type A)
1 × TF card slot, up to 128 GB

Video Input

1 × HDMI 2.1 (3840 × 2160@60 Hz)

Audio Port

1 × 3.5 mm jack output

IR Receiver

Yes

Speaker

Built-in Speaker

2 × 5 W

Touchscreen

Touch Technology

Capacitive

Response Time

≤8 ms

Touch Points

10 points

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

150 W (typ.), 160 W (max)

Standby Power Consumption

≤0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–85% (RH), non-condensing

Storage Humidity

10%–90% (RH), non-condensing

Product Material

Metal casing

Casing Color (Frame/Rear)

Black

Product Dimensions

1,955.0 mm × 879.0 mm × 88.9 mm (76.97″ × 4.68″ × 3.50″) (without bracket)
2,000.0 mm × 882.0 mm × 471.5 mm (78.74″ × 34.72″ × 18.56″) (with bracket)

Frame Size

35.6 mm/36.3 mm /38.4 mm (1.4″/1.43″/1.51″) (T/L/R)

Packaging Dimensions

2,125 mm × 200 mm × 1,050 mm (83.7″ × 7.9″ × 41.3″) (L × W × H)

Net Weight

65 kg (143.30 lb)

Gross Weight

78 kg (171.96 lb)

Installation

Vertical mount

Display Mode

Portrait

Accessory

Bracket, user’s manual, power cord, legal and regulatory information, energy label, remote control

Certification

Certifications

CE EMC, CE LVD, CE ERP
