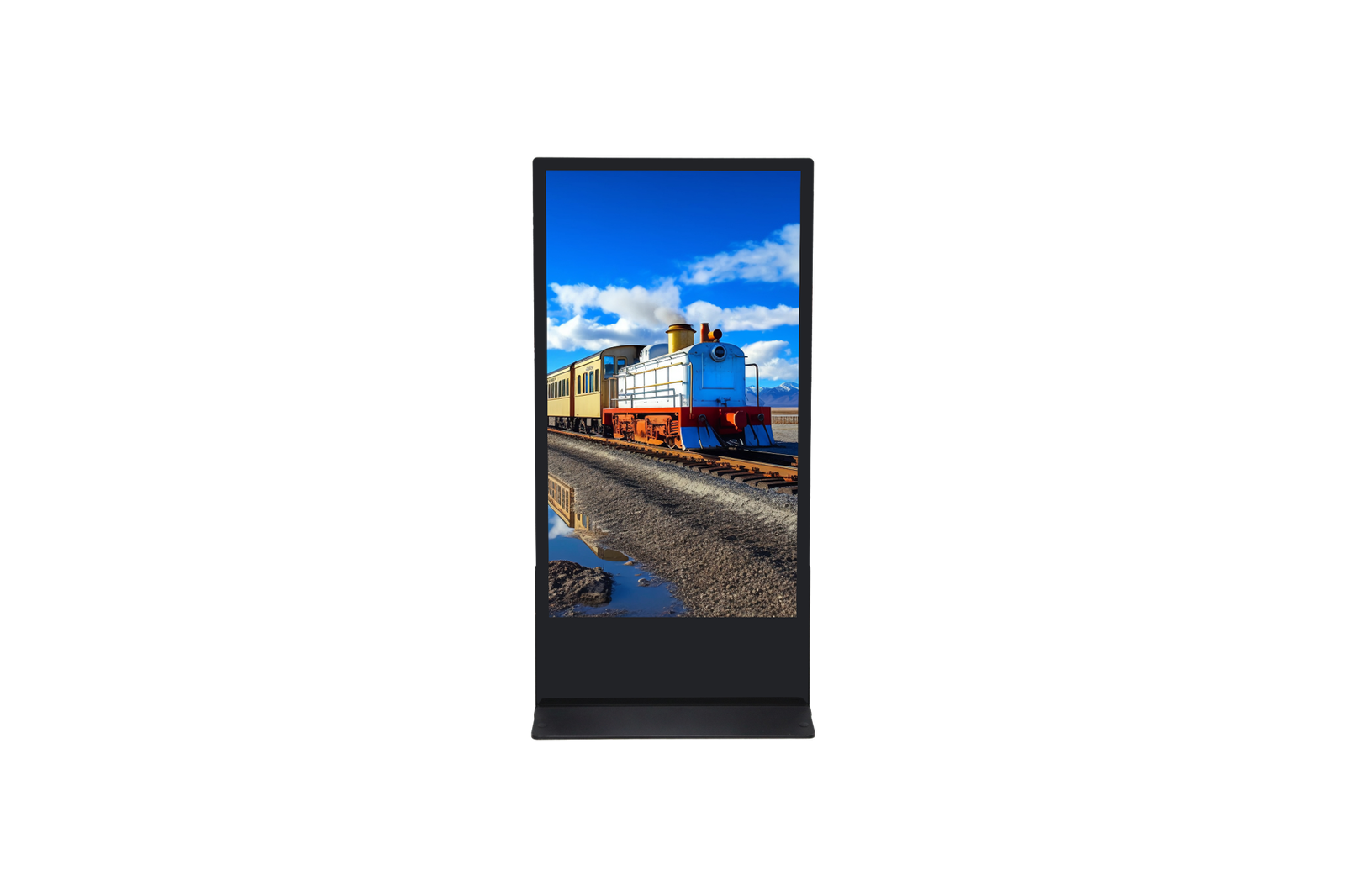

Dahua LDV75-SAI400L DIGITAL KIOSK

Dahua 75 inch Vertical LCD Digital Signage

> Designed with an industrial-grade panel. It works up to 24 hours a day.

> Includes a mainstream quad-core CPU, Android system, and decodes up to 4K resolution.

> Plays and releases programs in multiple modes.

> With intelligent split screen, its page layout can be freely adjusted, making it suitable for a variety of scenes.

> Designed with B/S architecture, the device manages programs by time and location, and generates operation reports.

> Supports encrypting platform data transmission, multi-level permission review for program release and terminal password protection.

> The device offers unified platform management, and can be remotely controlled by the platform.

LCD Panel

Panel Dimensions

75 inch

Backlight

DLED

LCD Technology

IPS/VA

Aspect Ratio

9: 16

Brightness

320 cd/m² (typ.)

Contrast

IPS 1200:1(typ.) / VA 4000:1(typ.)

Display Colors

10 bit (8 bit + FRC), 1.07B colors

Resolution

2160 (H) × 3840 (V)

Viewing Angle

178° (H); 178° (V)

Response Time

8 ms (typ.)

Surface Treatment

Haze 25%

Built-in System

Operating System

Android 11.0

CPU

4 cores A55, 1.92 GHZ

RAM

4 GB

ROM

32 GB

Video Decoding

H.265 HEVC MP-10@L5.1 up to 2160p@60 fps

H.264 AVC HP@L5.1 up to 2160p@30 fps

VP9 Profile 2 up to 2160p@60 fps

H.264 MVC up to 1080p@60 fps

MPEG-4 ASP@L5 up to 1080p@60 fps (ISO-13818)

WMV/VC-1 SP/MP/AP up to 1080p@60 fps

Function

Audio Compression

MPEG-3, WMA, WAV

Video Compression

MPEG-4, H.264 AVC/MVC, H.265 HEVC

Video Format

mp4, avi, mov, mkv, wmv

Device Ports

Network Port

1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet

port

Wi-Fi

Optional (External Wi-Fi module)

Bluetooth

Data Transmission Ports

1 × USB 2.0 ports (type A)

1 × USB 3.0 ports (type A)

1 × TF card slot, up to 128 GB

Video Input

1 × HDMI 2.1 (4K @60Hz)

Video Output

Audio Port

1 × 3.5 mm jack output

IR Receiver

Yes

Speaker

Built-in Speaker

2 × 5 W

General

Power Supply

100–240 VAC, 50/60 Hz

Power Consumption

≤ 200 W

Standby Power

Consumpton

≤ 0.5 W

Operating Temperature

0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operatng Humidity

10%–85% (RH), non-condensing

Storage Humidity

10%–90% (RH), non-condensing

Product Material

Metal casing

Casing Color (Frame/Rear)

Black

Product Dimensions

2028 mm × 1028 mm × 520 mm (79.84″ × 40.47″ ×

20.47″)

Packaging Dimensions

2204 mm × 234 mm ×1194 mm (86.77″ × 9.21″ ×

47.01”)

Net Weight

80 kg (176.37 lb)

Gross Weight

99 kg (218.26 lb)

Installation

Vertical mount

Display Mode

Portrait

Accessory

Base, user’s manual, power cord, legal and regulatory

information, remote control

Certification

Certifications

CE; ERP
