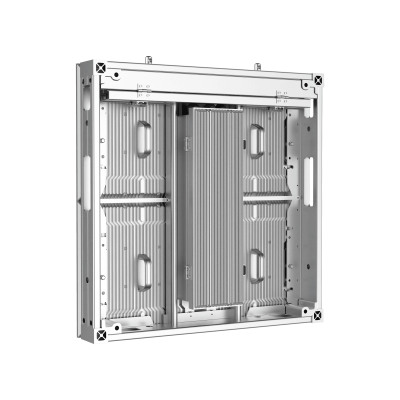

Dahua PHGOA2.97-PH

Dahua PHGOA2.97-PH

General Outdoor Fixed LED

> Super thin and light design: 77mm and 36kg/㎡.

> Support front&rear installation and maintenance.

> Support 90° right angle splicing.

> Aluminum module chassis and panel frame accelerates heat dissipation.

> High protection grade, IP68 on front and IP66 on rear.

> Dot by dot calibration ensures color richness and brightness uniformity.

Model
ModelDHI-PHGOA2.97-PH
Parameters
Pixel Pitch2.97mm
Pixel Configuration1R1G1B
LED TypeSMD1515
Brightness (Max)4500 nit
Color Temperature3500K-10000Kadjustable)
Viewing AngleH160° / V90°
Pixel Density112,896 dots/m²
Module Size250mm×250mm
Module Resolution84×84 dots
Cabinet SizeW500mm×H500mm×D77mm
Cabinet Resolution (W×H)168×168 dots
Cabinet Weight9.kg ± 0.5
Cabinet MaterialAluminum Alloy
Technical Specification
Model
ModelDHI-PHGOA2.97-PH
Parameters
Pixel Pitch2.97mm
Pixel Configuration1R1G1B
LED TypeSMD1515
Brightness (Max)4500 nit
Color Temperature3500K-10000Kadjustable)
Viewing AngleH160° / V90°
Pixel Density112,896 dots/m²
Module Size250mm×250mm
Module Resolution84×84 dots
Cabinet SizeW500mm×H500mm×D77mm
Cabinet Resolution (W×H)168×168 dots
Cabinet Weight9.kg ± 0.5
Cabinet MaterialAluminum Alloy
Operating Temperature/Humidity-40~+60/10~80%RH
Storage Temperature/Humidity-40~+60/10~80%RH
IP RatingFront IP68/Rear IP66
Cabinet Aspect Ratio1:1
Gray Scale (Max14 bits
Contrast Ratio6000:1
Refresh RateMax3840Hz
Input VoltageAC 110~220V (+/-10%)
Input Power (Max)680 W/m2
Input Power (Avg)200 W/m2
Installation ModeWall Mounted/Floor Mounted
Maintenance ModeFront&Rear Maintenance
Signal Transmission DistanceCAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km)
Operating Temperature/Humidity-40~+60/10~80%RH
Storage Temperature/Humidity-40~+60/10~80%RH
IP RatingFront IP68/Rear IP66
Cabinet Aspect Ratio1:1
Gray Scale (Max14 bits
Contrast Ratio6000:1
Refresh RateMax3840Hz
Input VoltageAC 110~220V (+/-10%)
Input Power (Max)680 W/m2
Input Power (Avg)200 W/m2
Installation ModeWall Mounted/Floor Mounted
Maintenance ModeFront&Rear Maintenance
Signal Transmission DistanceCAT5 Cable ( L≤100m ), multi-mode fiber ( L≤300m ), single mode fiber (L≤10km)
