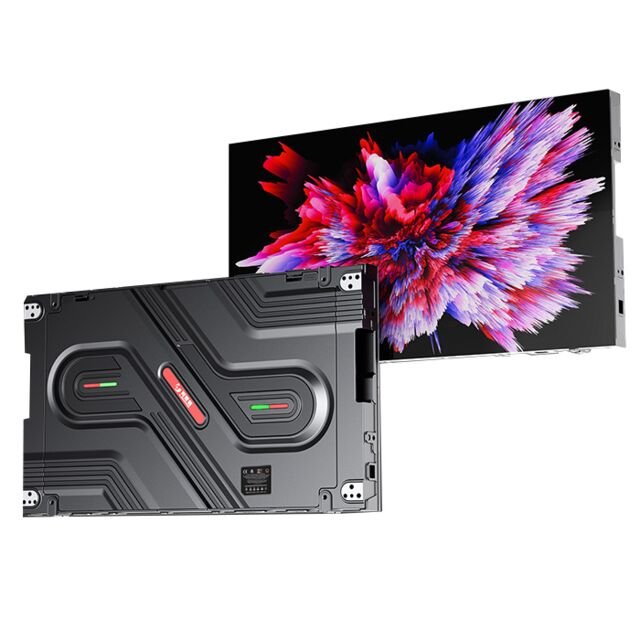

The Leyard VDS Series is Leyard Europe’s latest MicroLED technology using Chip on Board (COB) technology. COB MicroLED technology is becoming increasingly popular and Leyard Europe has developed the VDS Series to provide a state-of-the-art visualization solution. Using this technology allows the display to achieve extremely large viewing angles and high contrast ratios. All this while maintaining a very high power efficiency ratio. In addition, it comes packed with the latest 5G technology for easy installation and cabling.
The VDS Series offers 0.7, 0.9, 1.2 and 1.5mm pixel pitch models, all of which are fully installable and serviceable from the front. With a 27″ 16:9 cabinet, the VDS Series is perfect for Full HD, 4K and 8K setups. Combined with its protective coating, it is ideal for public spaces such as airports, train stations, museums and lobbies.
| VDS007 | VDS009 | VDS012 | VDS015 | |
|---|---|---|---|---|
| Pixel Pitch (mm) | 0.78 | 0.935 | 1.25 | 1.56 |
| Brightness, max. (cd/m²) | 600 | 600 | 600 | 600 |
| LED Type | Flip-Chip MicroLED COB | Flip-Chip MicroLED COB | Flip-Chip MicroLED COB | Flip-Chip MicroLED COB |
| Operating Mode | 24×7 | 24×7 | 24×7 | 24×7 |
| Color Bit Depth | 16 Bit (281 trillion colors) | 16 Bit (281 trillion colors) | 16 Bit (281 trillion colors) | 16 Bit (281 trillion colors) |
| Cabinet Resolution (WxH) | 768×432 | 640×360 | 480×270 | 384×216 |
