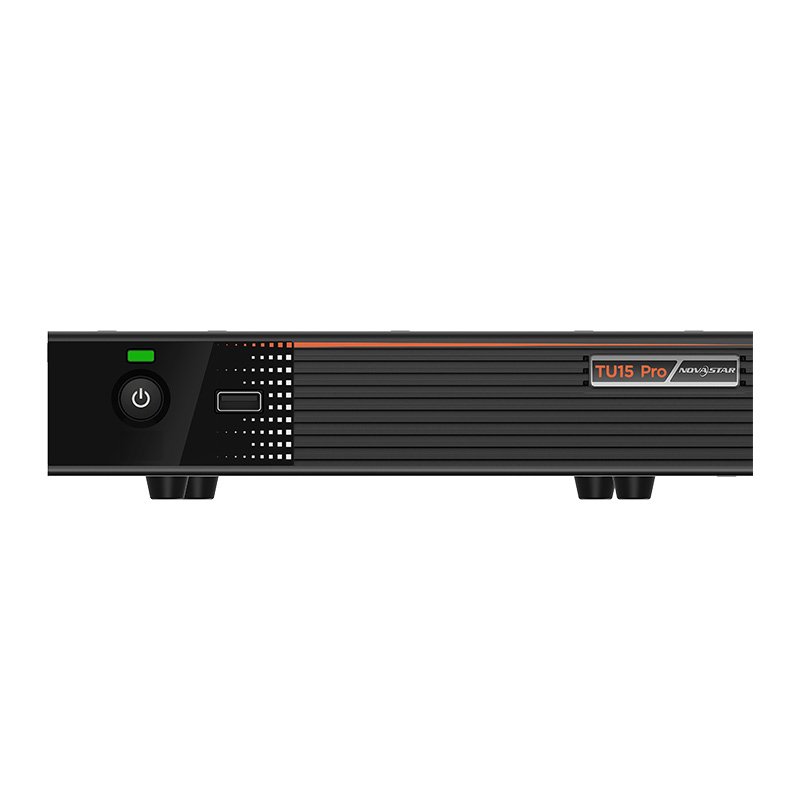

NovaStar TU15 Pro is a playback control processor specially designed for indoor LED screens. It integrates the Android system and sending card functions into one unit, and allows third-party apps to run on it, featuring powerful interaction and playback control capabilities.

The TU15 Pro supports wireless screen mirroring from Windows, macOS, iOS and Android terminals. For a standard 1080p video, the mirroring transmission is at up to 60 fps with a system latency of less than or equal to 80 ms at 8 meters. For different application scenarios, it provides 4 modes to let the document presentation, video playback and remote meetings have the optimal display effect.

The TU15 Pro has no requirements of redesigning or changing the screen structure and can be hung on the wall or placed on a surface, allowing for quick environment setup and use. It can be widely used in corporate exhibition halls, government and corporate educational halls, hotel lobbies, telemedicine consultation and other LED single-screen application scenarios.

Key Features

• Inputs and Outputs:
  • 2x HDMI 1.3 inputs
  • 3x USB 2.0 inputs for multimedia playback and function extension
  • 4x Ethernet outputs with a capacity of up to 2.6 million pixels
  • 2x audio outputs: 1x SPDIF digital audio output, 1x 3.5-mm audio output
  • Output image scaling: Width range 64 to 4096 pixels, Height range 64 to 1920 pixels, Total device load capacity ≤ 2.6 million pixels
• System Functions:
  • Android 11 based desktop UI system supporting third-party apps
  • Wireless screen mirroring from multiple platforms (Windows, macOS, iOS, Android)
  • Terminal app for wireless screen mirroring control, including mirror control, wireless snapshot, and wireless speech
  • Playback control via different terminals: mobile app (ViPlex Handy), remote, USB playback
  • Dual Wi-Fi modes allowing Wi-Fi and wireless hotspot connections simultaneously
  • Image quality enhancement focusing on contrast, detail, and color
  • Effect adjustment with standard, soft, theater, and meeting scenario modes, and brightness, saturation, contrast adjustments
  • Eye comfort mode and screen drawing/commenting capabilities
• Device Controls:
  • Gigabit Ethernet control port with TCP/IP protocol support
  • Low-power (less than 0.5 W) standby mode with infrared remote wakeup
  • Connectivity for relays for power management
  • Compatibility with meeting peripherals such as camera, sound system, and laser pointer
  • Intelligent control via mobile app (VNNOX Care) for screen configuration and device status monitoring
  • Bluetooth 5.1 connectivity for Bluetooth voice remote, mouse, keyboard, sound system, and other peripherals.

Certifications: CE, FCC, IC, SRRC

NovaStar Intelligent Broadcast Control Comparison
