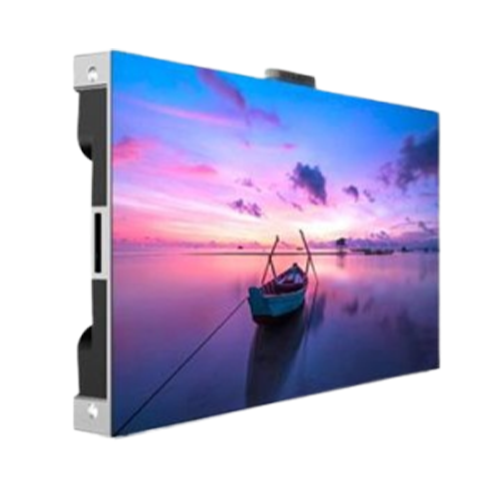

P2.5 Narrow Pixel Pitch LED Display

P2.5 Narrow Pixel Pitch LED Display

Overview

The P2.5 LED display provides excellent visual performance with balanced resolution and brightness, making it ideal for a wide range of indoor applications. With a high refresh rate and versatile maintenance options, it ensures reliable operation and easy servicing.

Features & Highlights

  • High refresh rate (3840 Hz) for flicker-free performance

  • Wide viewing angles for immersive visuals

  • Strong cabinet design with magnesium/aluminum die-cast material

  • Flexible maintenance options (front & rear)

  • Reliable performance with energy-efficient power supply


Applications

  • Indoor events & exhibitions

  • Shopping malls & retail displays

  • Corporate meeting rooms

  • Control rooms and command centers

  • Airports & transport hubs

Key Specifications

ParameterSpecification
Pixel Pitch2.5 mm
Pixel Density160,000 dots/m²
LED TypeSMD 1515
Driver ICHigh-performance (MBI 5153 / ICN2053 compatible)
Module Size— (configured per cabinet)
Cabinet Size640 × 480 mm
Cabinet Resolution256 × 192 pixels
Cabinet MaterialMagnesium / Aluminum Die-cast
Brightness800 – 1000 nits
Refresh Rate3840 Hz
Viewing Angle178° (H) / 160° (V)
Viewing Distance2.5 m – 100 m
Protection LevelIP57
Power SupplyHigh-efficiency dual supply
MaintenanceFront & Rear Access
Control SystemCompatible with major LED controllers
