Key Features
Fine Pixel Pitch — 3.91mm pitch provides sharp images with excellent detail at medium viewing distances.
High Brightness — Typically over 5000 nits, ensuring visibility under strong sunlight.
Wide Viewing Angle — 140° horizontal and vertical angles for consistent, clear visuals from various perspectives.
Robust Outdoor Build — IP65-rated front and rear, protecting against dust, rain, and harsh weather.

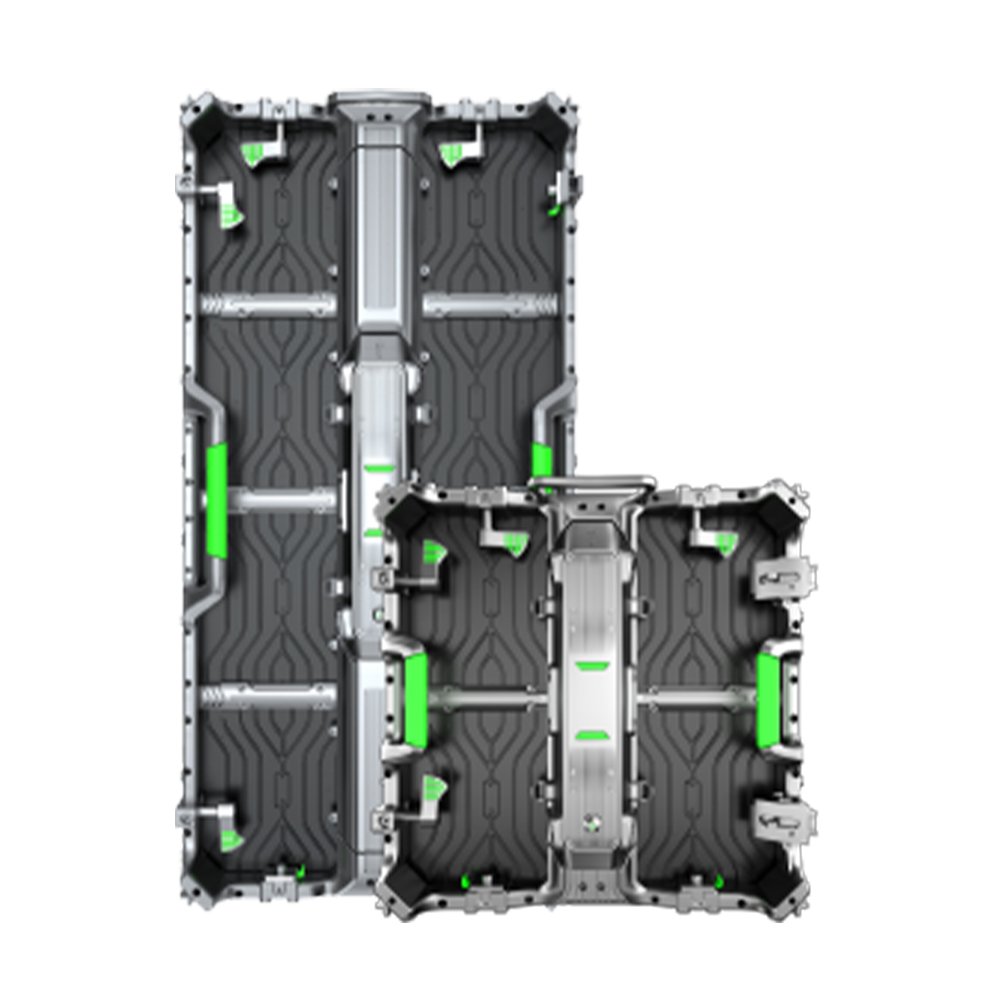

Modular Cabinet Design — Lightweight aluminum cabinets for easy installation and maintenance.
High Refresh Rate — ≥3840Hz refresh for flicker-free display suitable for camera filming and live broadcasts.
Energy Efficient — Designed to minimize power consumption while maintaining brightness and image quality.
Applications
Outdoor advertising billboards
Sports stadium displays
Public information screens in transportation hubs
Event and concert backdrops
Retail and commercial outdoor signage
| Pixel Pitch | 3.91mm |
| Resolution | 168 x 168 |
| Unit Size (W x H x D) | 500 x 500 x 88 / 500 x 1000 x 88 mm |
| Module Size (W × H) | 128 x 128 mm |
| Panel Technology | SMD |
| Brightness | 4500 nits |
| Gray Scale | 14 bit |
| Contrast Ratio | 5000:1 |
| Colour Temperature | 3200 ～ 12000 (adjustable) K |
| Viewing Angle (H./V.) | 140° / 120° |
| Refresh Rate | 3840 Hz |
| Lifetime | ≥100,000 hours |
| Working Voltage | AC: 100V ~ 220V, 50/60Hz |
| Power Consumption Max | ≤800 W/m² |
| Operating Temperature | -20 ~ +50 °C |
| Humidity Range | 10% ~ 90% RH |
| Weight | 8 / 13 kg |
