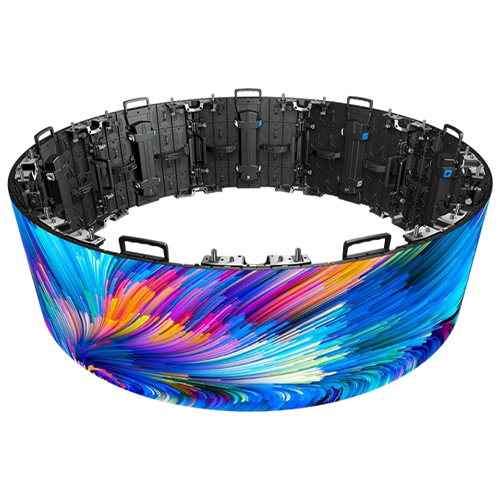

P6.6 Curved / Cylindrical LED Display

P6.6 Curved / Cylindrical LED Display

Overview

The P6.6 curved and cylindrical LED display is designed for mid-range viewing applications, offering high brightness and seamless visuals. With durable steel cabinets and weatherproof protection, it is suitable for both outdoor and indoor installations requiring immersive curved or cylindrical screen designs.

Key Features

  • Pixel pitch of 6.6 mm for mid-range viewing

  • High brightness of 6,200 nits ensures visibility in sunlight

  • IP65-rated protection for outdoor durability

  • Flexible cabinet sizes for installation versatility

  • Smooth 16-bit grayscale for vivid image reproduction

  • Wide viewing angles for consistent audience experience

Technical Specifications

SpecificationValue
Pixel Pitch6.6 mm
Pixel Density22,500 dots/m²
LED TypeSMD 3535 / 2727
Driver ICHigh-performance constant current driver
Refresh Rate1920 – 3840 Hz
Brightness6,200 nits
Grayscale16-bit
Module Size320 × 320 mm
Module Resolution48 × 48
Cabinet Size960×960 / 1280×960 / 1024×1024 mm
Cabinet MaterialSteel
Protection LevelIP65
Viewing Distance6.6 m – 100 m
Viewing Angle170° H / 120° V
Power SupplyIndustrial-grade, energy-efficient
Control SystemStandard LED display control system
