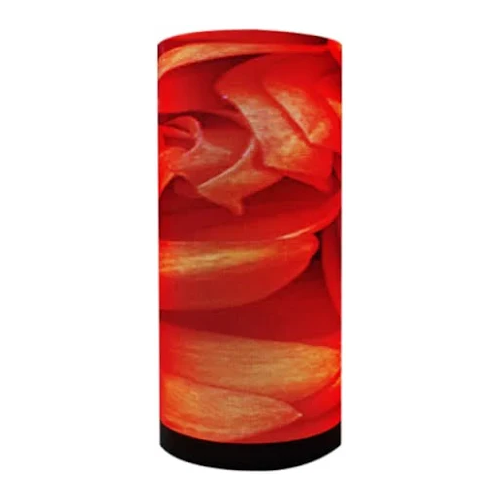

P6 Curved / Cylindrical LED Display

P6 Curved / Cylindrical LED Display

Overview

The P6 curved and cylindrical LED display is built for medium to large-scale installations, offering high brightness and durable performance. Its 6 mm pixel pitch ensures clear visuals at viewing distances starting from 6 meters, making it ideal for both indoor and outdoor environments.

Key Features

  • Pixel pitch of 6 mm for medium viewing distances

  • High brightness of 6,000 nits for outdoor clarity

  • IP65-rated weatherproof protection

  • Wide 170° horizontal and 120° vertical viewing angles

  • Energy-efficient power design

  • Strong steel cabinet with multiple size options

Technical Specifications

SpecificationValue
Pixel Pitch6 mm
Pixel Density27,777 dots/m²
LED TypeSMD 3535 / 2727
Driver ICHigh-performance constant current driver
Refresh Rate1920 – 3840 Hz
Brightness6,000 nits
Grayscale16-bit
Module Size192 × 192 mm
Module Resolution32 × 32
Cabinet Size960×960 / 1280×960 / 1024×1024 mm
Cabinet MaterialSteel
Protection LevelIP65
Viewing Distance6 m – 100 m
Viewing Angle170° H / 120° V
Power SupplyIndustrial-grade, energy-efficient
Control SystemStandard LED display control system
