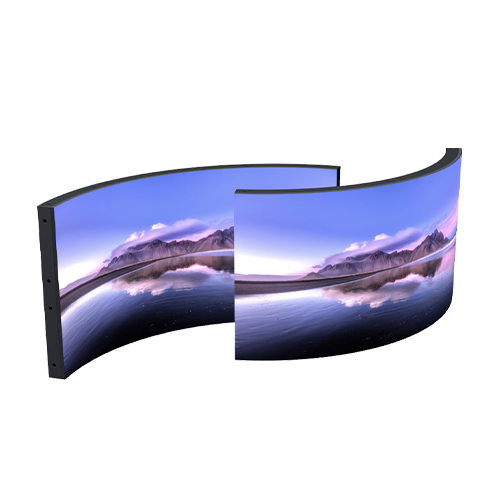

P8 Curved / Cylindrical LED Display

Overview

The P8 curved and cylindrical LED display is built for large-scale visual applications with viewing distances starting from 8 meters. Its high brightness and robust construction make it a reliable choice for outdoor events, building facades, and immersive architectural designs.

Key Features

  • Pixel pitch of 8 mm for large viewing areas

  • High brightness of 6,500 nits for outdoor visibility

  • Wide 170° horizontal and 120° vertical viewing angles

  • IP65-rated protection for weather resistance

  • Flexible cabinet size options for versatile installations

  • 16-bit grayscale processing for smooth color gradation

Technical Specifications

SpecificationValue
Pixel Pitch8 mm
Pixel Density15,625 dots/m²
LED TypeSMD 3535 / 2727
Driver ICHigh-performance constant current driver
Refresh Rate1920 – 3840 Hz
Brightness6,500 nits
Grayscale16-bit
Module Size320 × 320 mm
Module Resolution40 × 40
Cabinet Size960×960 / 1280×960 / 1024×1024 mm
Cabinet MaterialSteel
Protection LevelIP65
Viewing Distance8 m – 100 m
Viewing Angle170° H / 120° V
Power SupplyIndustrial-grade, energy-efficient
Control SystemStandard LED display control system
